Phosphophyllite
Background
Its january 2020 and mechanical keyboards are becoming more and more popular. At the time I had a bog standard membrane keyboard and have been wanting to upgrade to a mechanical keyboard for some time. I explored what options there were available and decided to go for a split keyboard for the improved ergonomics with an ortholinear layout for a more aesthetic look. Unfortunately this combination was pretty rare, so much so, that as far as I can remember no commercial options were even available and the only custom options I could find were exceptionally expensive. So knowing my uni semester break was about to start soon and I was going to have some free time on my hands I decided the best approach would be to build the keyboard myself.
Research
Luckily for me the custom keyboard community has gotten quite big at that point so finding resources was super simple. I used various posts from reddit, various discord communities and a few other sources for specific examples of custom keyboards. Even then there were many tutorials on youtube which showed the process of creating keyboard PCBs in detail. I used KiCAD as my design software of choice with QMK as the keyboard firmware and decided to make my PCB use standard soldered Gateron/Cherry switches and keep it wired as to keep the design as simple as possible. While researching I noticed that a lot of custom keyboards have anime themes and or characters attributed to them and me being deep into my anime era I decided that this keyboard was going to be themed after Phosphophyllite, a character of one of my favorite shows: Land of the Lustrous.
PCB Design

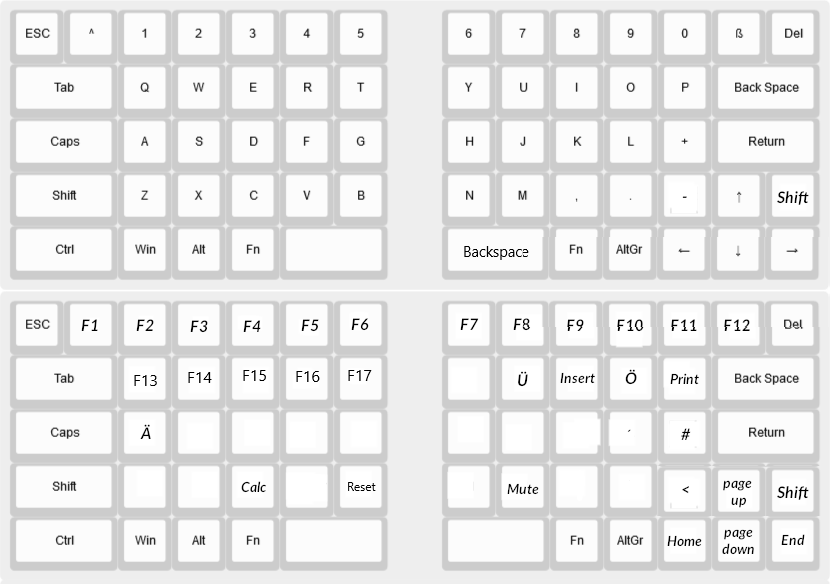

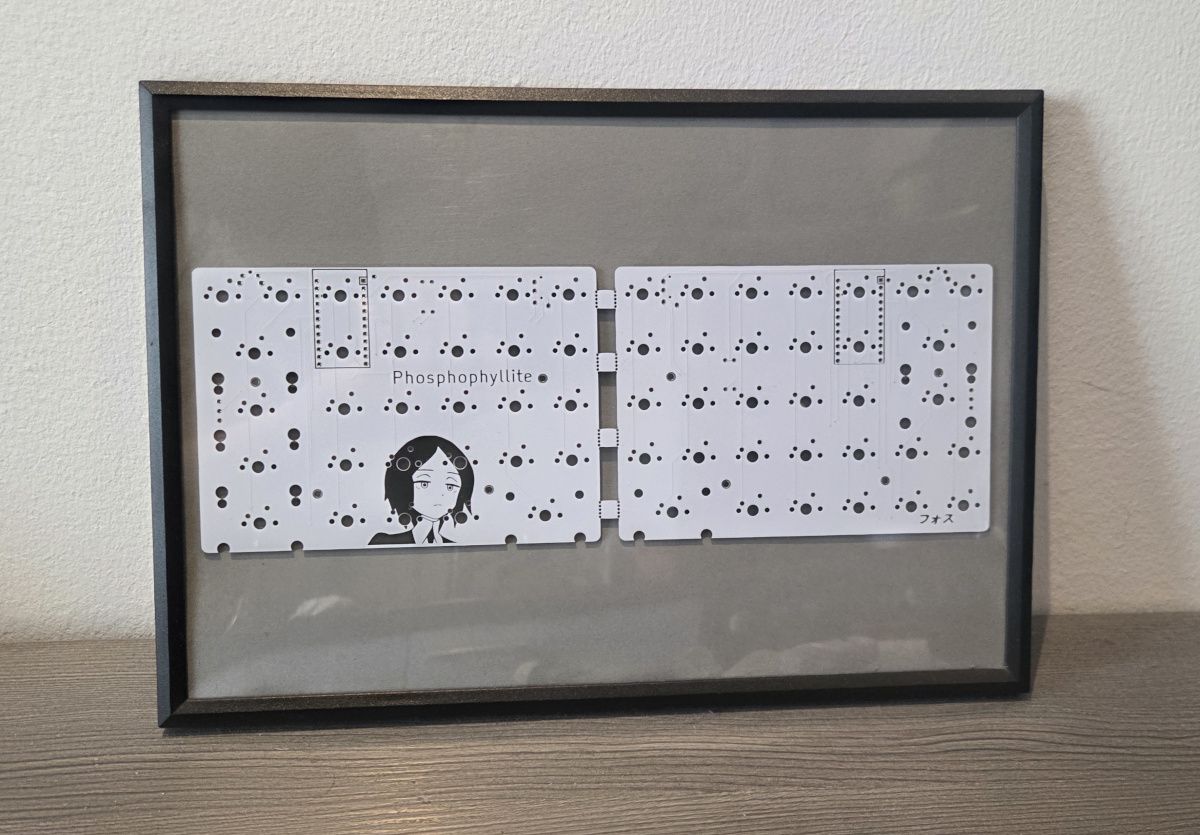

The first step was deciding on the general layout of the keyboard and roughly planning the keys and layers to ensure I had all the functionality that I needed. I figured a roughly 60% layout (meaning no function key row or numpad) was going to be sufficient for my needs, but I wanted to keep the arrow keys and instead get rid of a few of the special characters on the right. From my planning I expected two layers to be enough but I made sure to add two function/layer keys to the keyboard so that I could program a third layer if necessary. Since I was going to be using KiCAD for the designing I could use a standard USB-C based microcontroller which had plenty of templates available to import into my pcb design. To connect the two boards I ended up with a TRRS cable which is pretty common. Despite going for a simple design the PCB creation was still a bit challenging as this was my first PCB design ever and I needed to avoid the common pitfalls and keep the connections optimized. With the main connections finished ...
Case Design

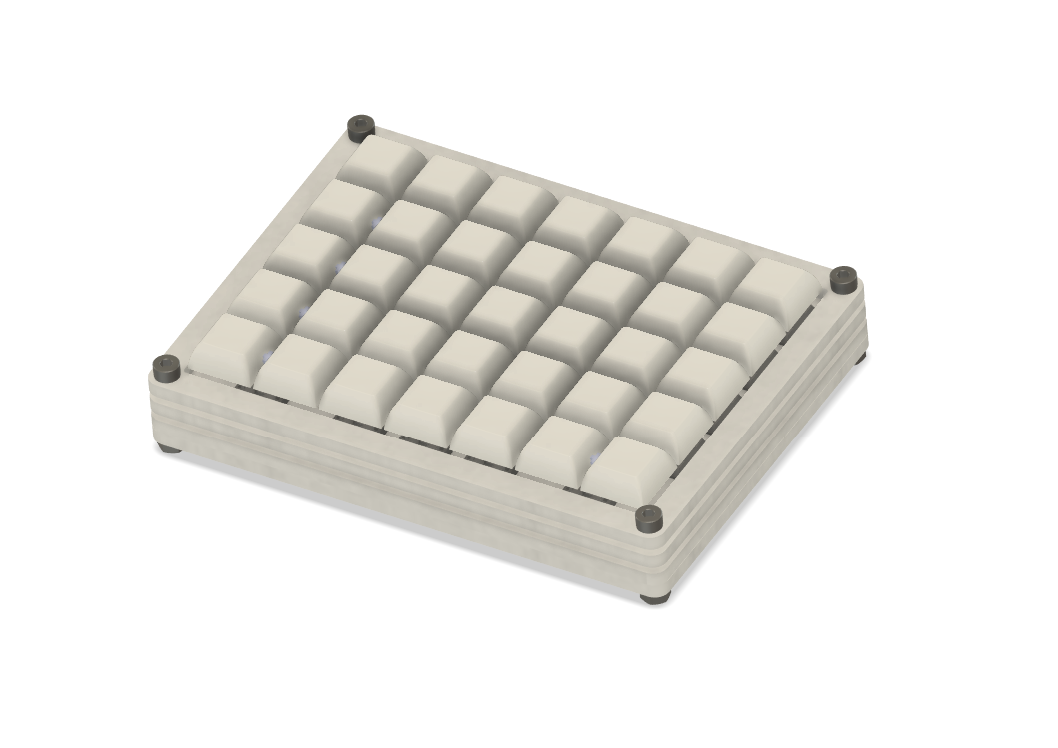

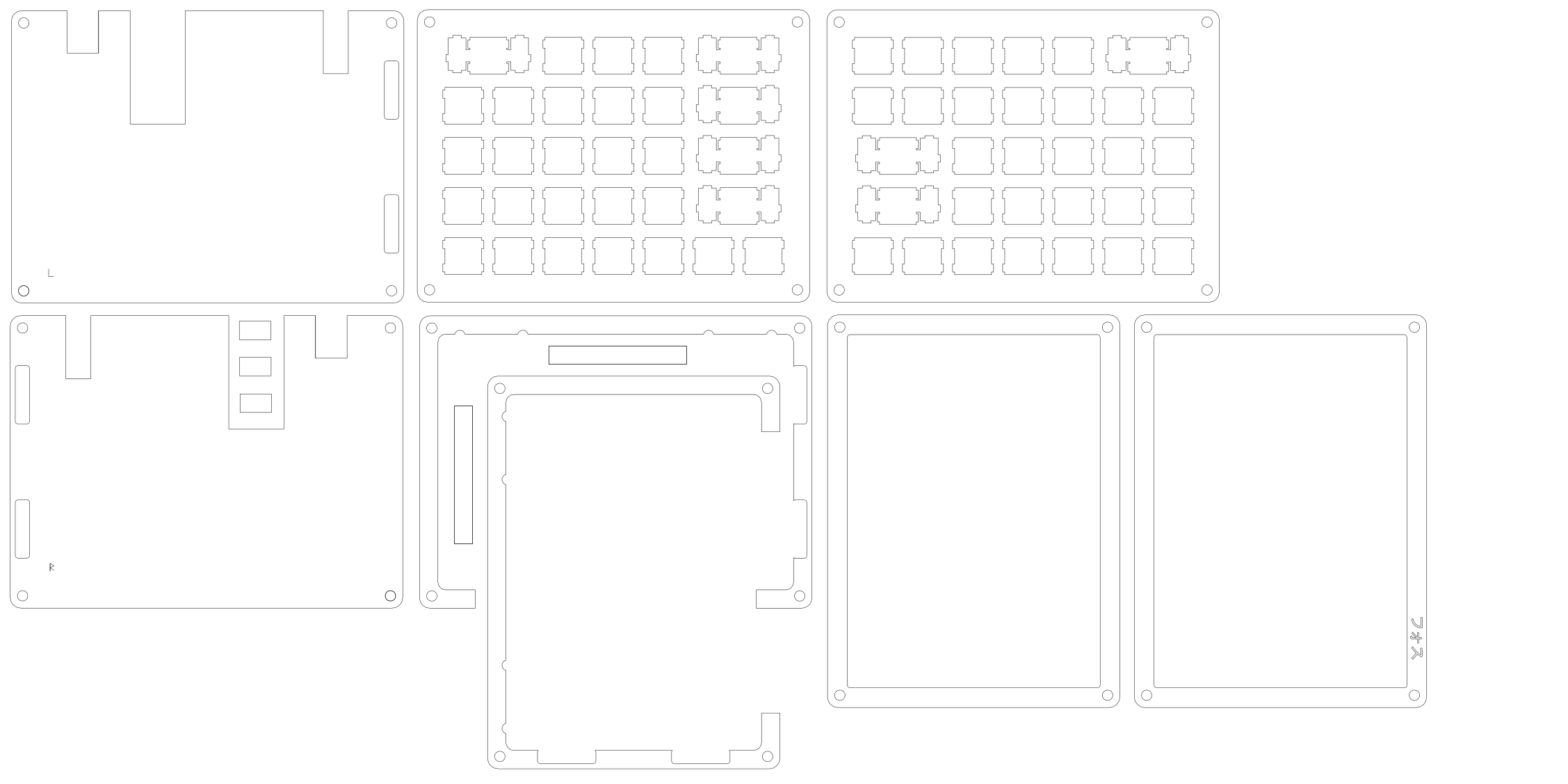

Once the PCB design was finished and out for processing it was time to create the case that would be holding it all together. At the time I did not have a 3D printer available but I could use the laser cutter at my university so that's what I ended up using. I did some rough sketches and made a simple model using multiple 4mm layers in Fusion 360. One special feature of my design was that I embedded magnets in the sides of the left and right parts of the keyboard in opposite polarities so that they would connect together smoothly and not split apart on every movement while still being easily separable.Keycaps
This is the area in which I chose to spend the least of my budget. The reason for this being that my layout was so custom that there was no reasonable way to find keycaps that would accurately show my layout and the heavy use of 2u keycaps pretty much forced me to buy keycaps by the piece. Single keycaps for pretty much any size can be found on places like aliexpress and after choosing a somewhat nice looking color scheme I counted out the keycaps and got them ordered. The downside was that these were unprinted, meaning you would have a hard time typing if you weren't familiar with it. I simply took this as a challenge to improve my touch typing in the process.
